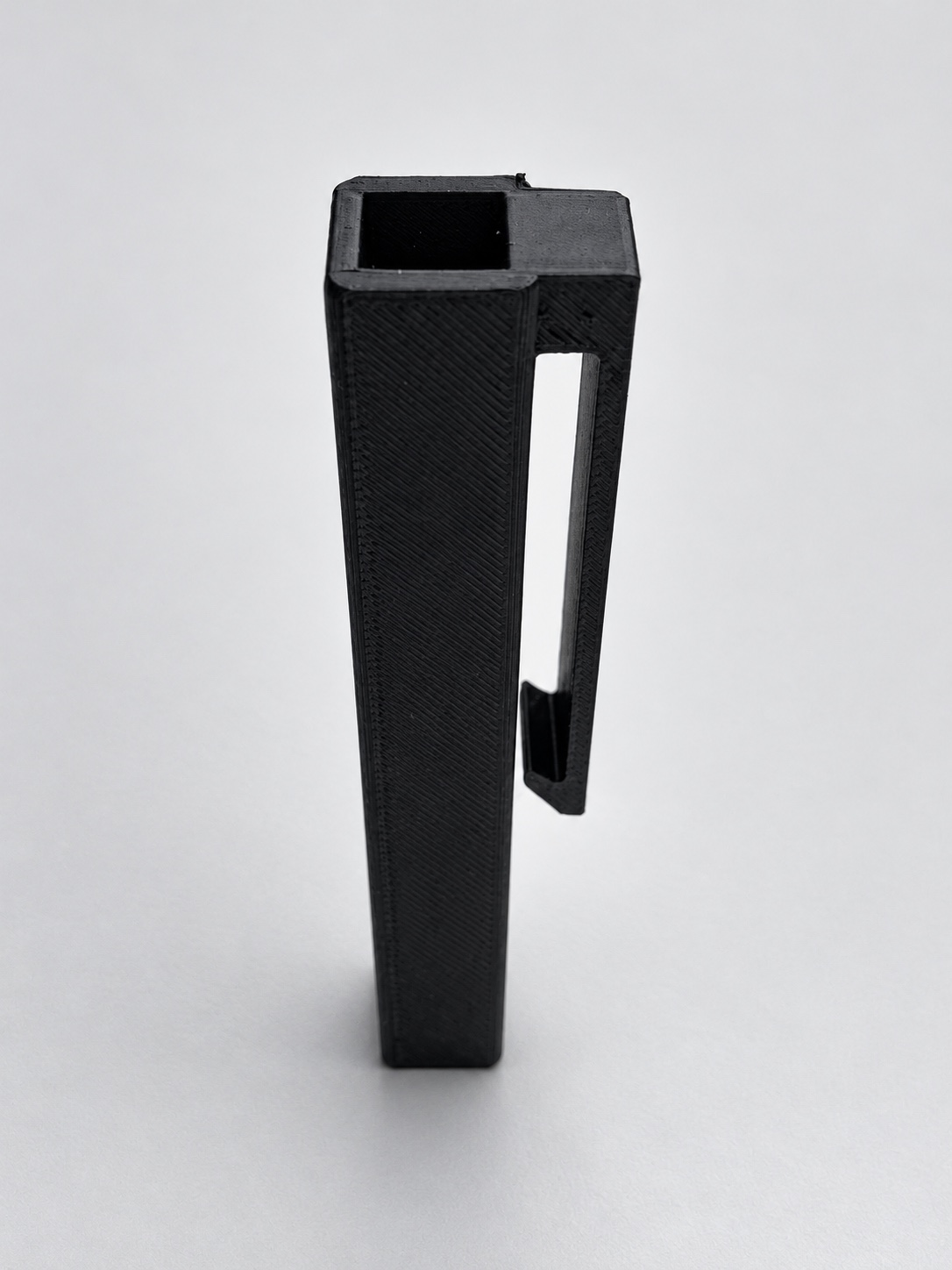

A square channel.
The opening is designed around the REXID chisel’s 8 mm square shaft.
F/S — 002TAPERED / PROTOTYPE
360° / PRODUCT VIEWLoading rotation…
100%
CHISEL HOLDERDRAG TO ROTATE · + / − TO ZOOM
Technical views use the tapered holder’s actual CAD geometry. The physical prototype is black; orange lines highlight the design.
PRODUCT 002 / IN DEVELOPMENT
CHISEL
HOLDER.
FOR THE REXID B01.270 LETTERING CHISEL
A dedicated sleeve for the REXID hard-stone lettering chisel with an 8 mm cutting edge and 8 mm square shaft. A tapered internal channel and integrated pocket-and-belt clip give the tool a place of its own.
Pricing coming soonHolder only
Chisel not included
Chisel not included
COMING SOON
Black prototype shown. Fit, clip retention, tip clearance, and production details are being finalized before ordering opens.
Holder only. The REXID chisel shown in the photographs is for fit reference and is not included.
THE PHYSICAL PROTOTYPE
From the drawing
to the real thing.

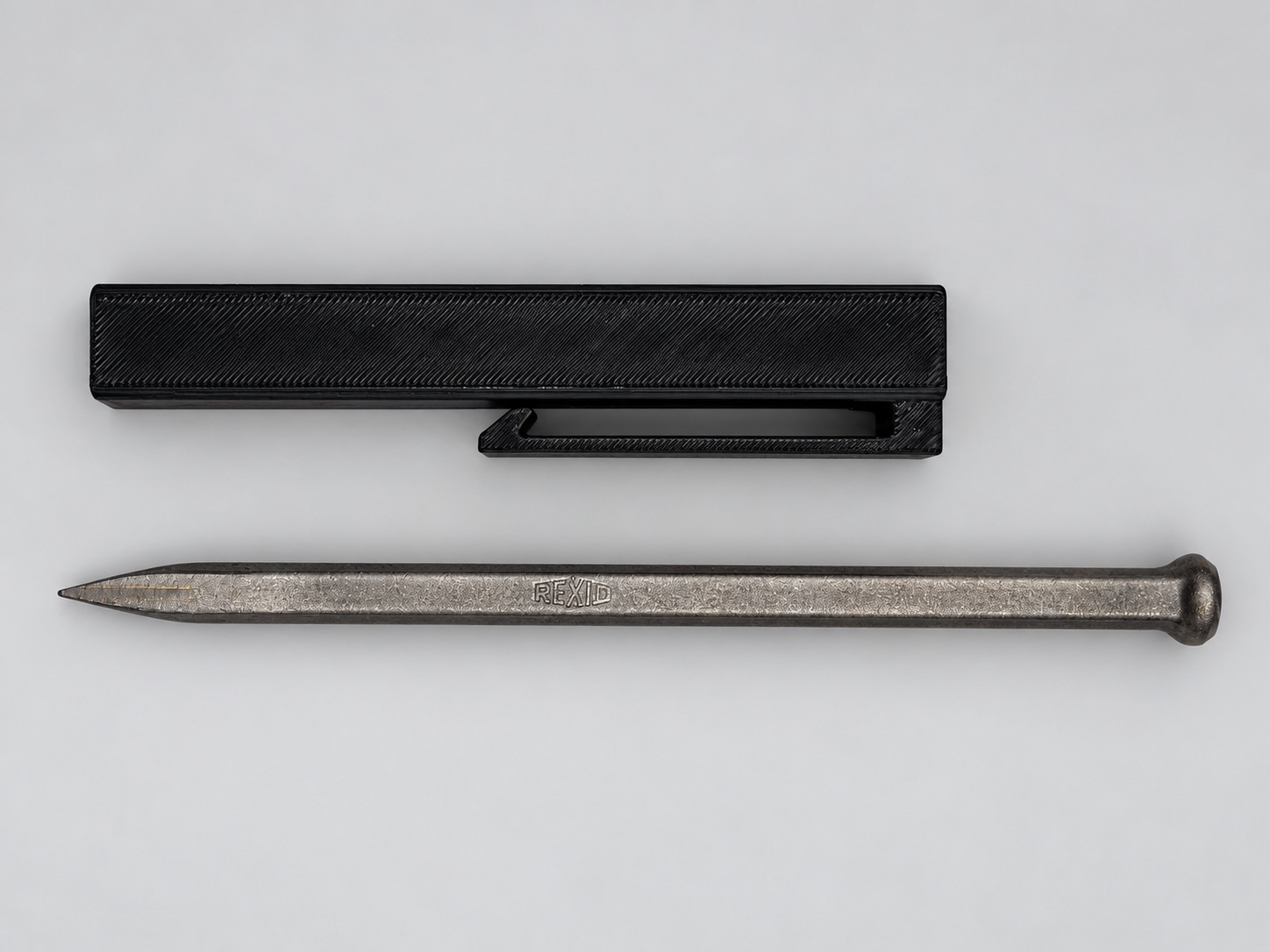

Black PLA. The actual holder and chisel.
Photos cleaned for presentation.
A CLOSER LOOK / TAPERED DESIGN
A place for
the sharp end.
A dedicated sleeve with an integrated clip.
Physical fit checks are still required.

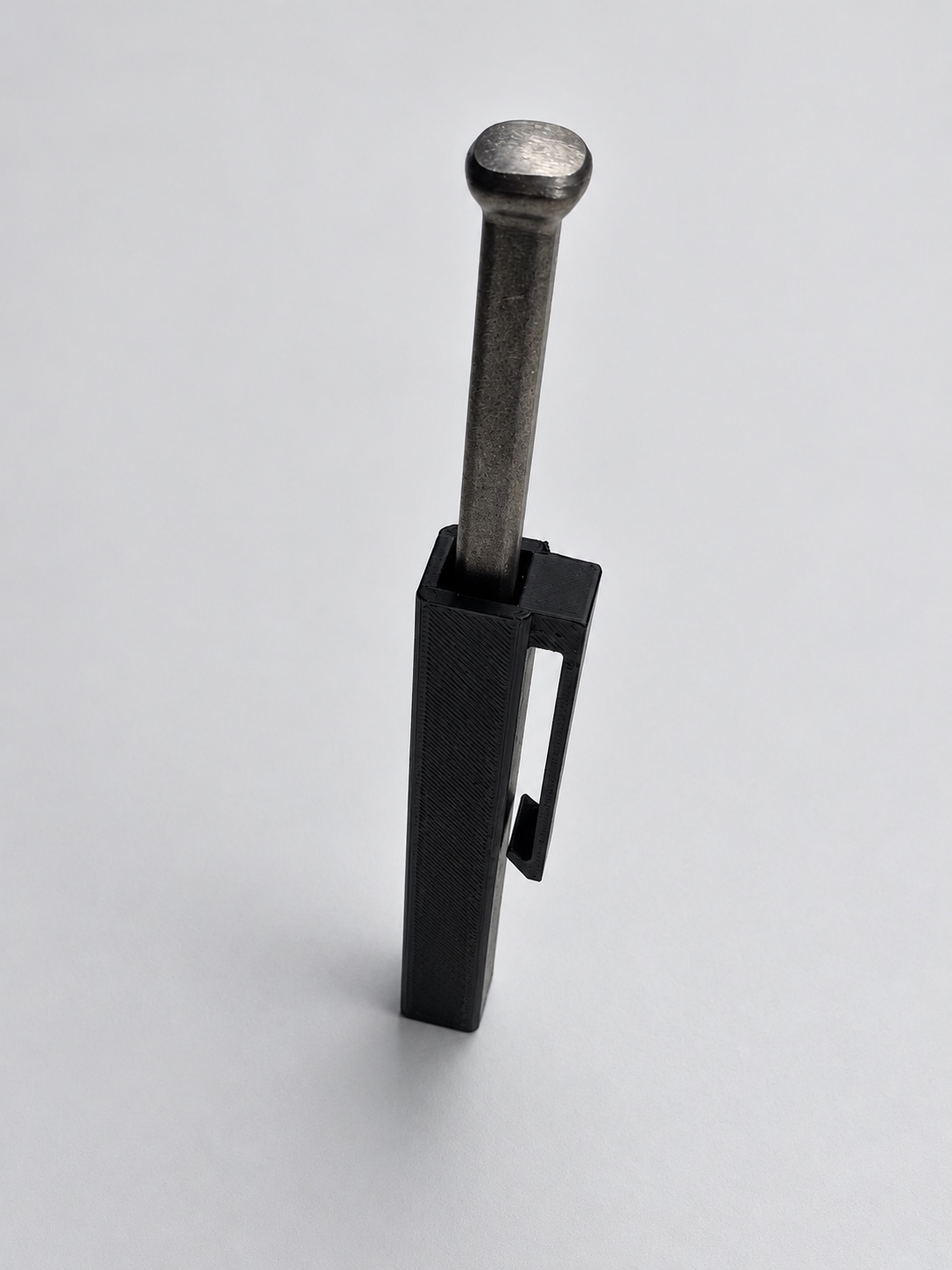

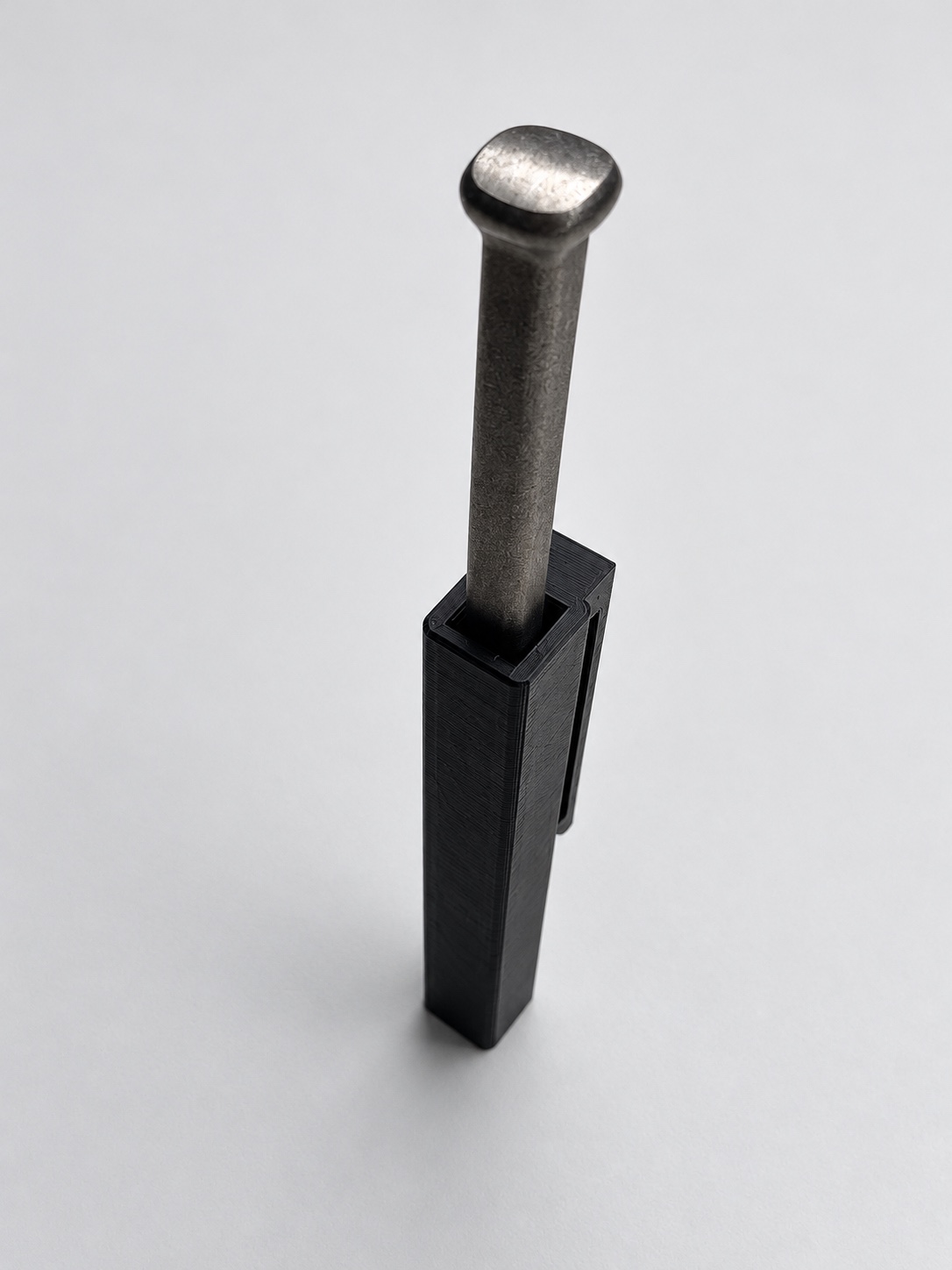

A tapered seat.
The internal shape is designed to seat the shaft above the closed base. Tip clearance will be verified on the physical prototype.

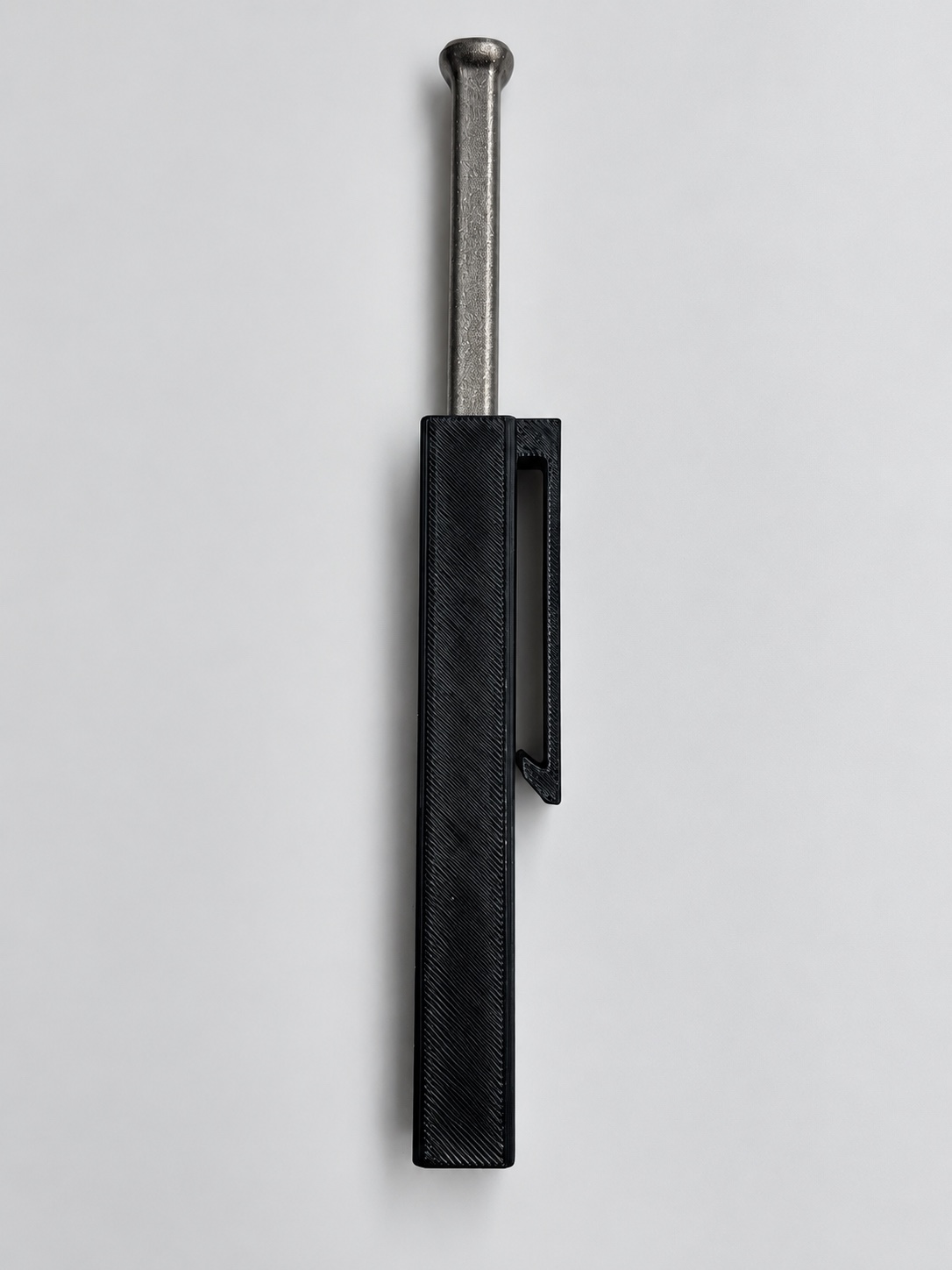

An integrated clip.
The one-piece body includes a pocket-and-belt clip. Its shape and return hook are shown in the technical views.
ORTHOGRAPHIC / SIDE PROFILESIZE & COMPATIBILITY
- Designed for
- REXID B01.270 lettering chisel
- Chisel cutting edge / shaft
- 8 mm edge / 8 mm square shaft
- Holder body length
- 120 mm
- Photographed prototype
- Black PLA
- Attachment
- Integrated pocket-and-belt clip
Size is based on the current design. Tip clearance depends on the actual chisel shape; retention and clip fit must be checked. This listing does not claim compatibility with every 8 mm chisel.
BEFORE YOU ORDER
The essentials.
Which chisel is this for?+
The referenced tool is the REXID B01.270 hard-stone lettering chisel with an 8 mm cutting edge and 8 mm square shaft. Other chisel shapes and sizes have not been confirmed.
Is the chisel included?+
No. This product is the 3D-printed holder only. The metal chisel shown is a compatibility reference.
Is this ready to order?+
Not yet. Pricing, stock, shipping, production material, and final fit checks will be confirmed before checkout opens.
How should the prototype be fitted?+
Seat the chisel gently by hand; never hammer it into the holder. Confirm that the tip clears the bottom and inspect the clip and sleeve before use.
